Applicatoin frequency of the wire rope hoist |
Item | Daily average usage time (hr) | ≤0.5 | ≤1 | ≤2 | ≤4 | ≤8 | ≤16 | >16 | |
---|---|---|---|---|---|---|---|---|---|
Light load | Can be used for 8 hours per day 8 | Ⅰm | Ⅰm | Ⅰm | Ⅱm | Ⅱm | Ⅲm | Ⅳm | |
Standard load | Can be used for 4 hours per day 4 | Ⅰm | Ⅰm | Ⅱm | Ⅱm | Ⅲm | Ⅳm | Ⅴm | |
Heavy load | Can be used for 1 hour per day | Ⅰm | Ⅱm | Ⅲm | Ⅳm | Ⅳm | Ⅴm | Ⅴm |
* The signs such as l m and ll m in the above table show the applicable ranges of the crane structural standard. The wire rope hoist can be used up to ll m |
Illustration about types |
Standard Specifications |
Specifications | CS,CG,CP | CM |
---|---|---|
POWER SOURCE | AC ¢220v50/60Hz,380v50/60Hz,440v50/60Hz | |
PUSH BUTTON | 2-point(U D) | 4-point(U D E W) 6-point(U D E W S N) |
CONTROL VOLTAGE | AC110V or AC24V | |
CONSTRUCTION | WEATHER AND DUST PROOF | |
AMBIENT TEMPERATURE | -10℃~+ 40℃ | |
COATING COLOR | Munsell10B3/5 | |
INSULATION CLASS | Category F | |
UTILIZATION FACTOR | 25%ED, 240회/hr |

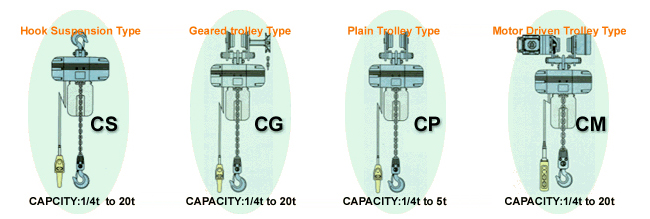

Hoist type |
